Plot ohmic-area#

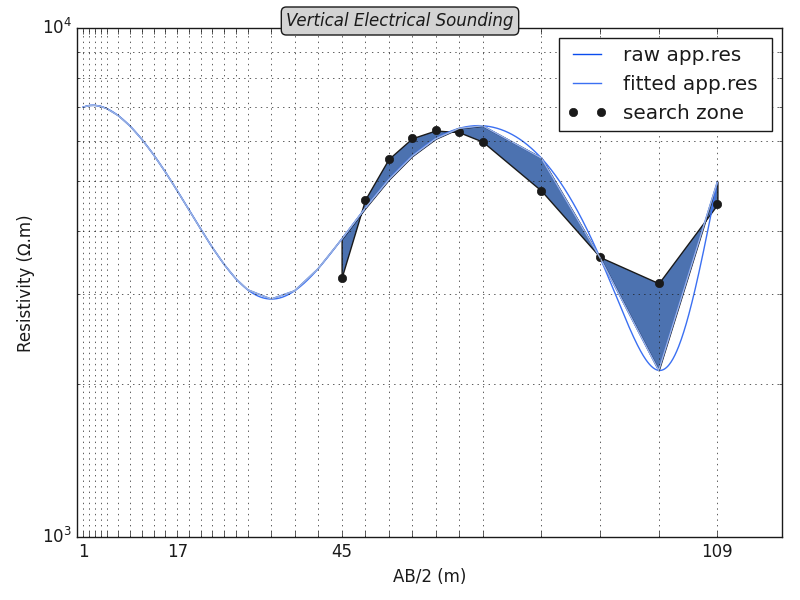

visualizes the ohmic-area from the vertical electrical sounding data.

# Author: L.Kouadio
# Licence: BSD-3-clause

Generates a synthetic data using the function make_ves()

from watex.datasets import make_ves
from watex.utils.exmath import plotOhmicArea

ves_data = make_ves (min_rho = 10 , max_rho = 1e4, as_frame =True, seed=425,
                     iorder =5  )
plotOhmicArea (ves_data, style ='classic', colors =['#0A4CEE', "#3B70F2"],
               show_grid = True , fbtw=True )

Total running time of the script: (0 minutes 0.317 seconds)
