Plot Strata#
plot stratigraphic log
# Author: L.Kouadio
# Licence: BSD-3-clause
import watex.utils.geotools as GU
layers= ['$(i)$', 'granite', '$(i)$', 'granite']
thicknesses= [59.0, 150.0, 590.0, 200.0]
hatch =['//.', '.--', '+++.', 'oo+.']
color =[(0.5019607843137255, 0.0, 1.0), 'b', (0.8, 0.6, 1.), 'lime']

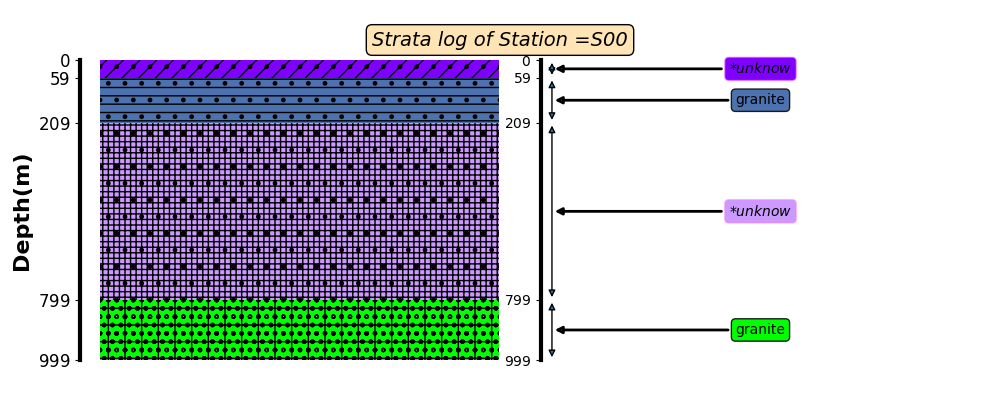

GU.plot_stratalog (thicknesses, layers, hatch =hatch ,
color =color, station='S00')
GU.plot_stratalog ( thicknesses,layers,hatch =hatch,
zoom =0.25, color =color, station='S00')
Total running time of the script: (0 minutes 0.272 seconds)
