Plot log

plots a collection of logging data.

# Author: L.Kouadio
# Licence: BSD-3-clause

Plot the logging data using the default behavior use the borehole h2601. Note that each logging data composes a column of data collected on the field. Note that can also plot anykind of data related that it contains numerical values. The function does not accept categorical data. If categorical data are given, they should be discarded.

from watex.datasets import load_hlogs
from watex.utils.plotutils import plot_logging
X0, y = load_hlogs (as_frame =True, key='h2601') # get the frame rather than object

print(X0.columns )
print(y.columns )
#for demonstration we plot the following features
features = ['depth_top',
     'resistivity',
     'gamma_gamma',
     'sp', # spontaneous polarization
     ]
X= X0[features ]

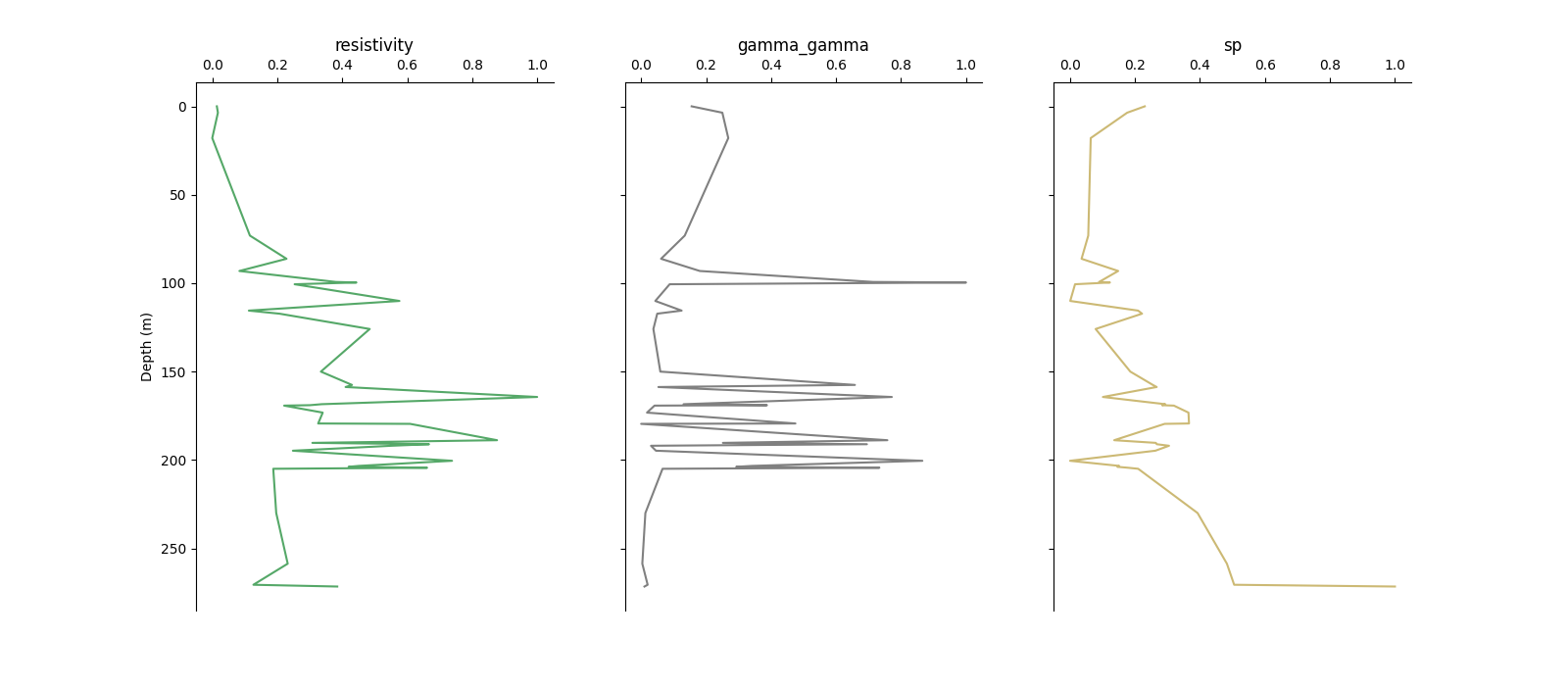

# plot the default logging with Normalize =True  wih only three features

plot_logging (X, normalize =True)

Index(['hole_id', 'depth_top', 'depth_bottom', 'strata_name', 'rock_name',
       'layer_thickness', 'resistivity', 'gamma_gamma', 'natural_gamma', 'sp',
       'short_distance_gamma', 'well_diameter'],
      dtype='object')
Index(['aquifer_group', 'pumping_level', 'aquifer_thickness',
       'hole_depth_before_pumping', 'hole_depth_after_pumping',
       'hole_depth_loss', 'depth_starting_pumping', 'pumping_depth_at_the_end',
       'pumping_depth', 'section_aperture', 'k', 'kp', 'r', 'rp', 'remark'],
      dtype='object')

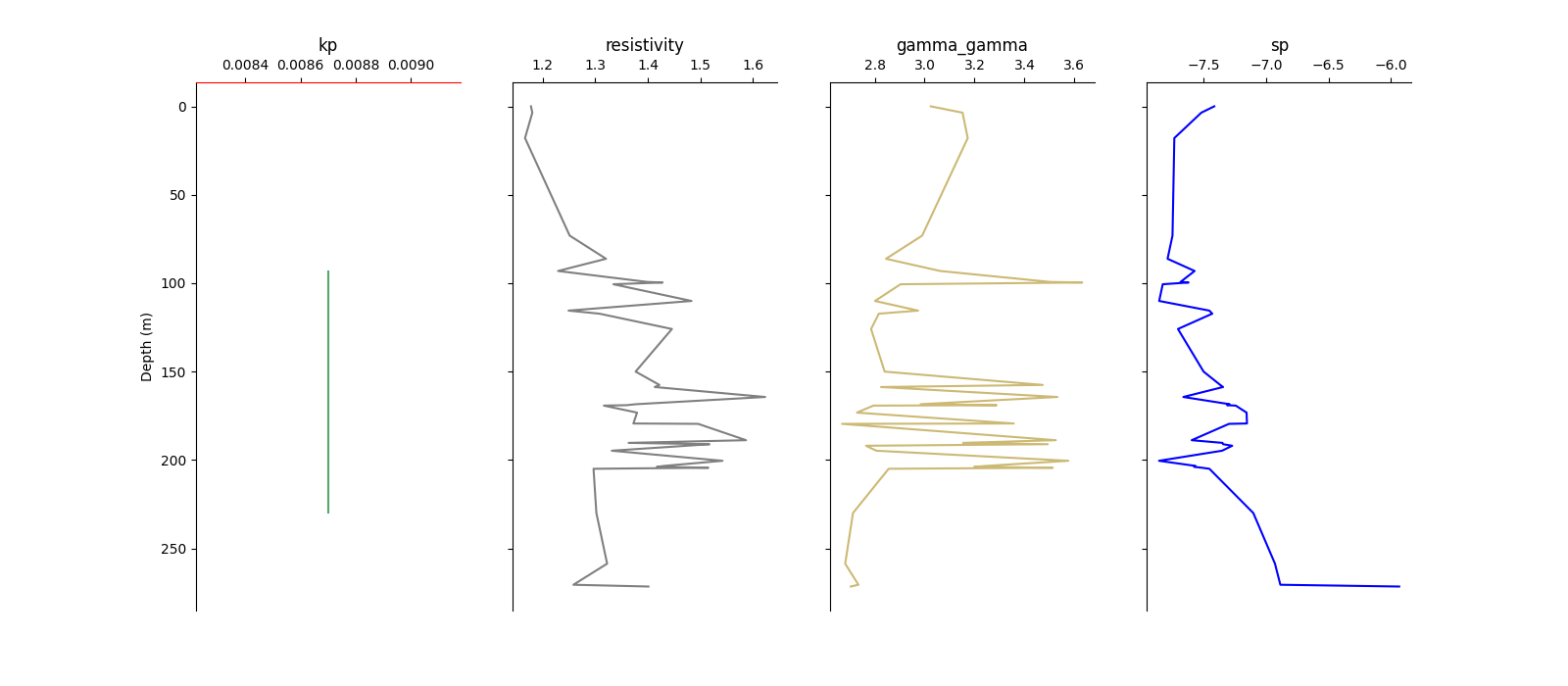

Plot log including the target placed at the first position with parameter posiy=0. The predictor \(X0\) is systematically convert to log10 is set to ‘True’. Note that kp is the categorize k

plot_logging ( X,  y = y.kp , posiy = 0,
                  columns_to_skip=['sp'], # does not convert sp to log10
                  log10 =True,
                  )

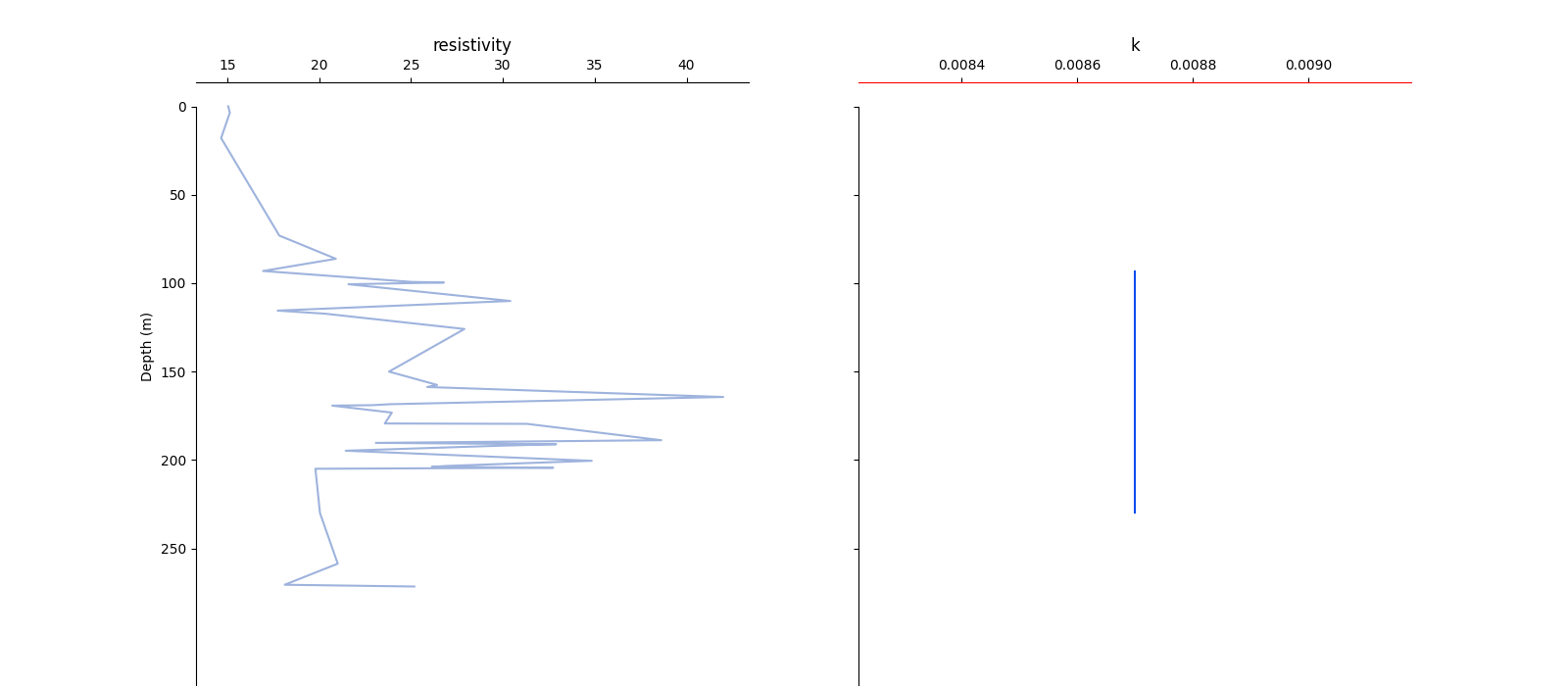

Plot can be customize , for instance, by setting the draw_spines with a depth limit from 0 to 700 m.

# draw spines and limit plot from (0, 700) m depth
plot_logging (X[features[:-2]] , y= y.k, draw_spines =(0, 700),
              colors =["#9EB3DD", "#0A4CEE"] )
