Vertical Electrical Sounding (VES)

visualizes the fracture zone from synthetic VES data.

# Author: L.Kouadio
# Licence: BSD-3-clause

VES is carried out to speculate about the existence of a fracture zone and the layer thicknesses. Commonly, it comes as supplement methods to ERP after selecting the best conductive zone. Here we give a synthetic plot and compute the probable fracture zone from parameer search we will generate a synehic data with 50 samples i.e 50 measurements in deeper using the function make_ves().

from watex.datasets import make_ves
ves_data = make_ves ( seed=123, iorder =4 ).frame
from watex.methods import VerticalSounding
veso = VerticalSounding (search = 45 ).fit(ves_data )

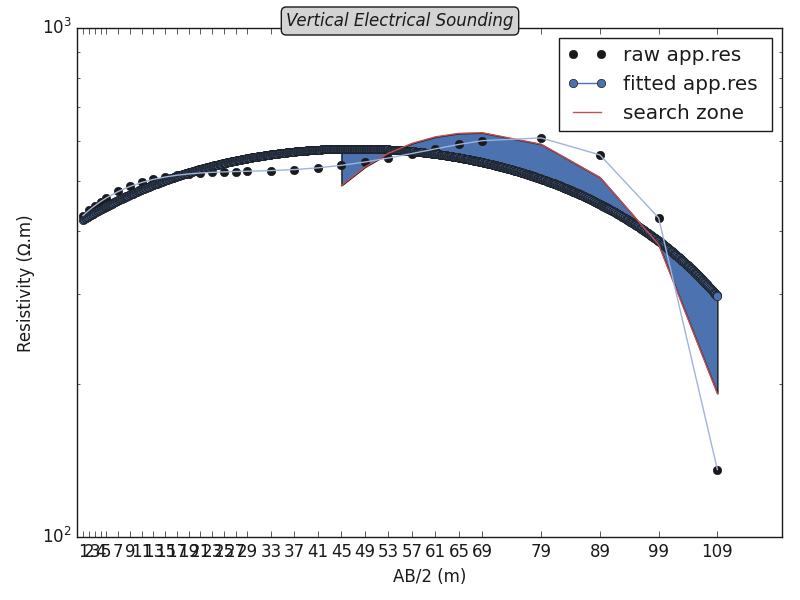

veso.plotOhmicArea (fbtw=True , style ='classic')
